OM0ET (Paul) - UltraLight Magnetic Loop antenna MC-20
This is a very nice, well built and fair priced QRP (max. 20W) portable magnetic loop antena with full 40m-10m coverage.
Some initial observations (before being tested in a real QSO):
excellent measurement results for most of the bands
antena tuning is very sensitive, especially in the upper bands (10m and up). The resonant frequency is changing significantly (considering the very small bandwidth) when you move away from the loop.
because of the way the tripod mount is implemented (a simple screw) and the weight of the antenna, most of the cheap tripods will not offer proper stability
You can find more details about construction and how can be ordered on Paul's web page here.
In the following tables click on the small pictures for bigger images.

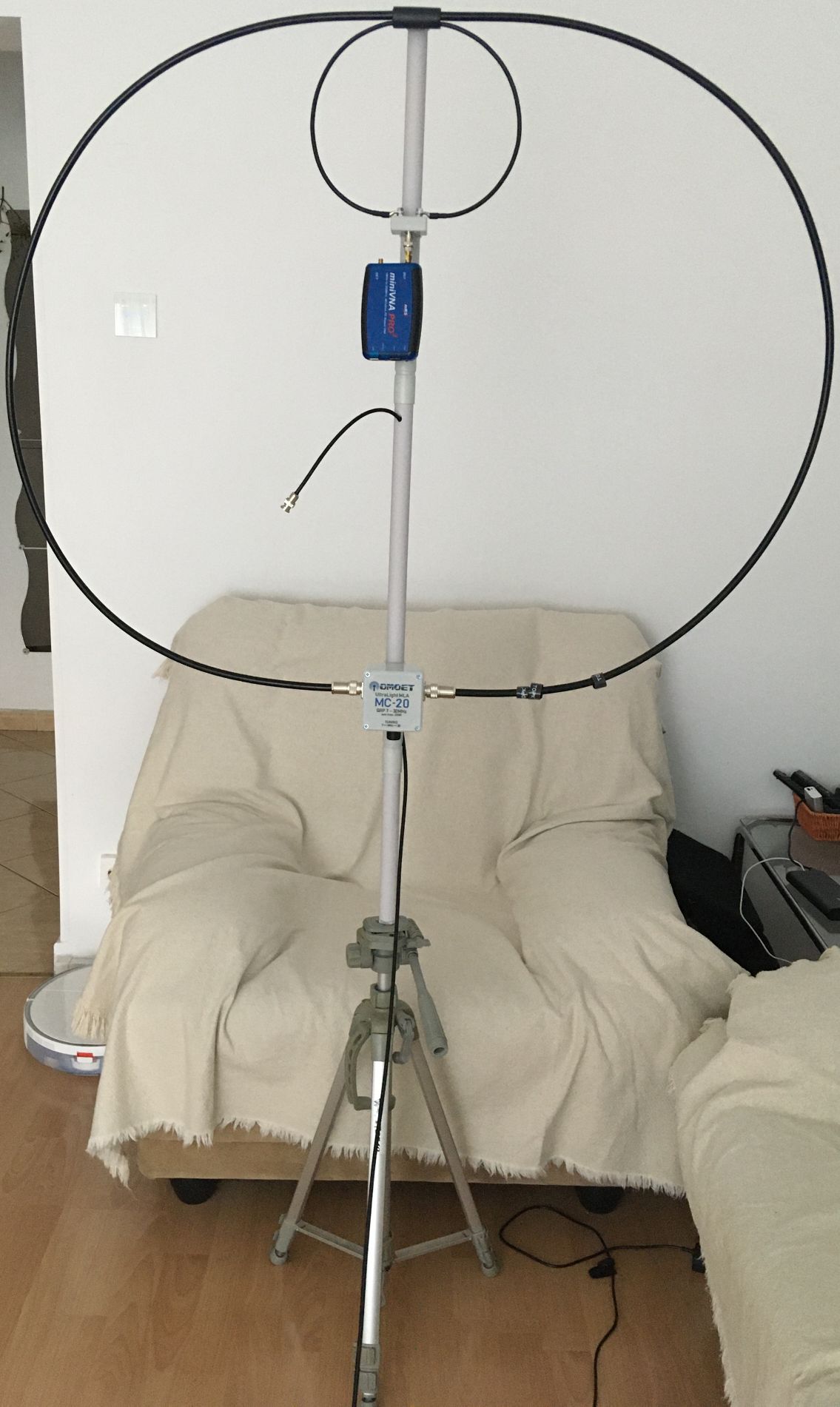

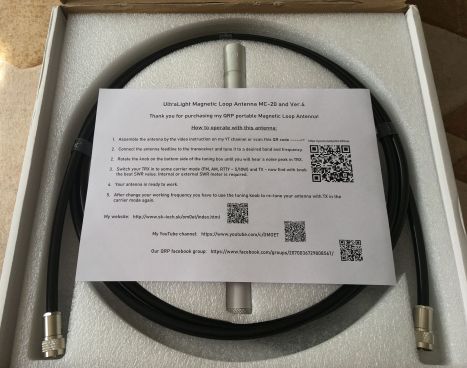

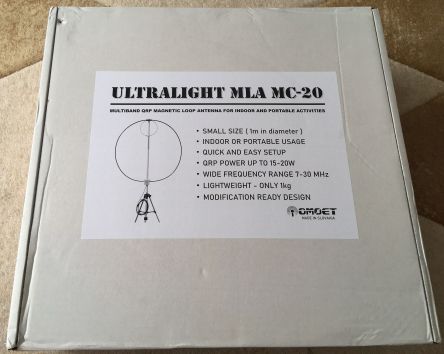

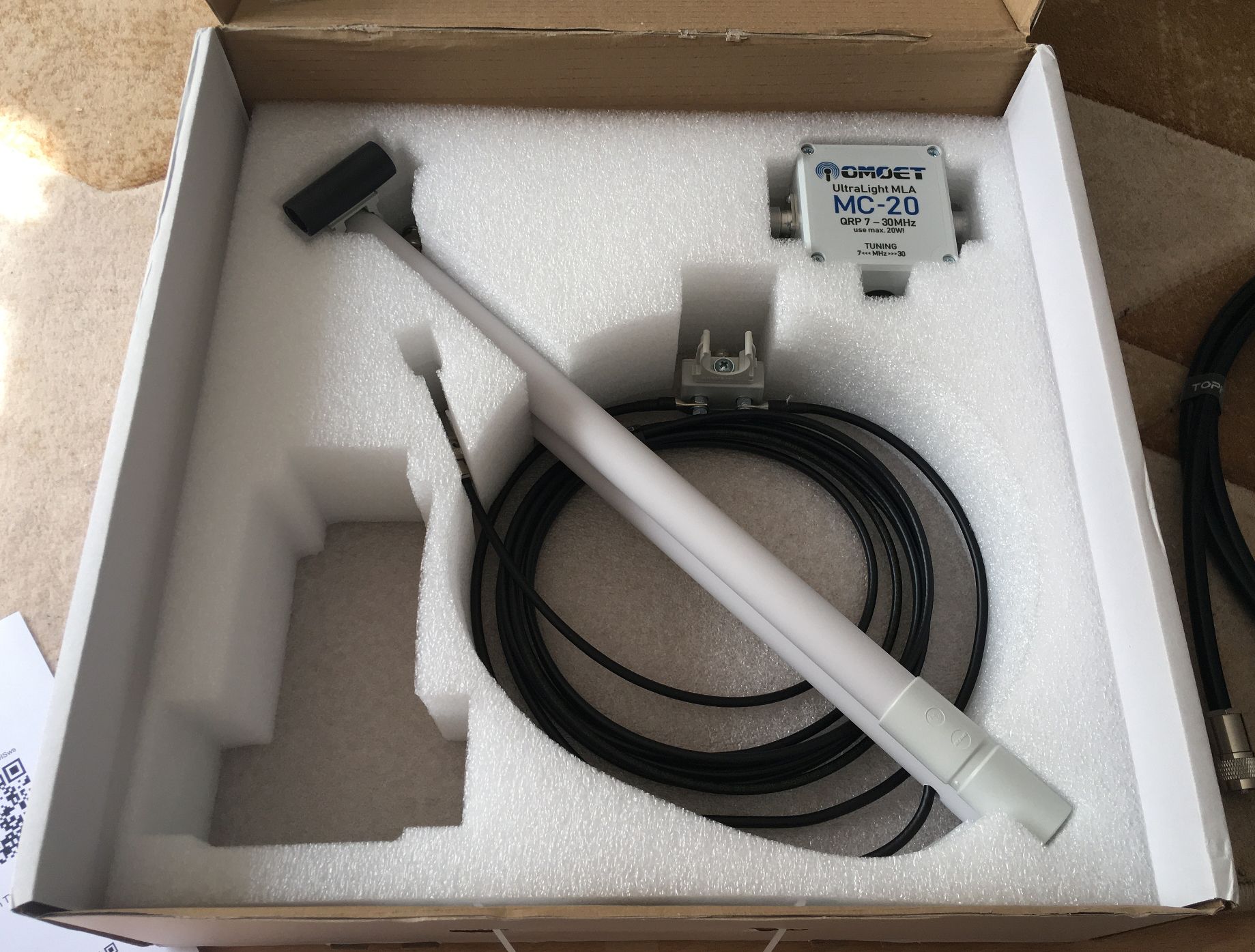

Some pictures with the package and mounted antenna

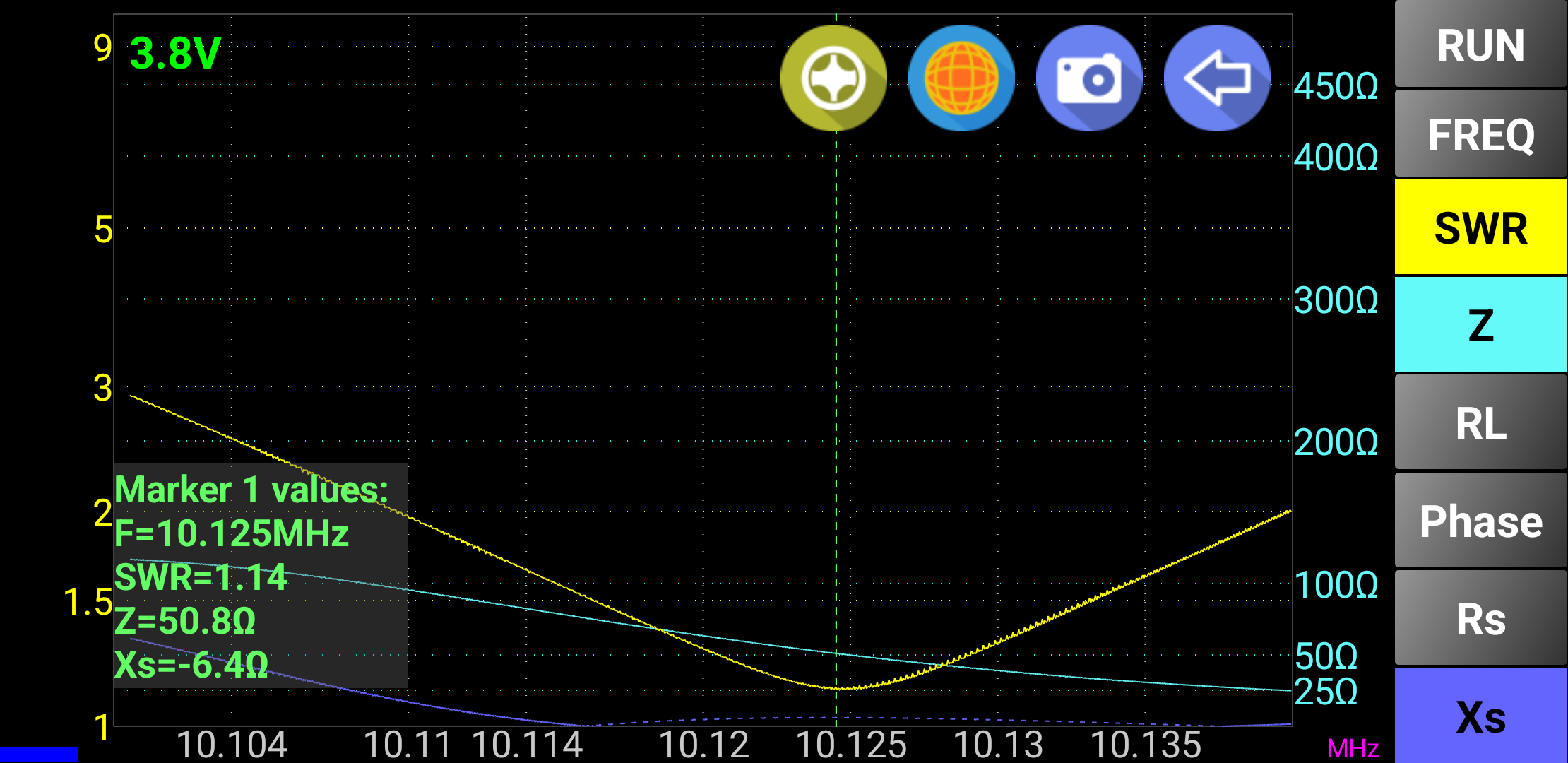

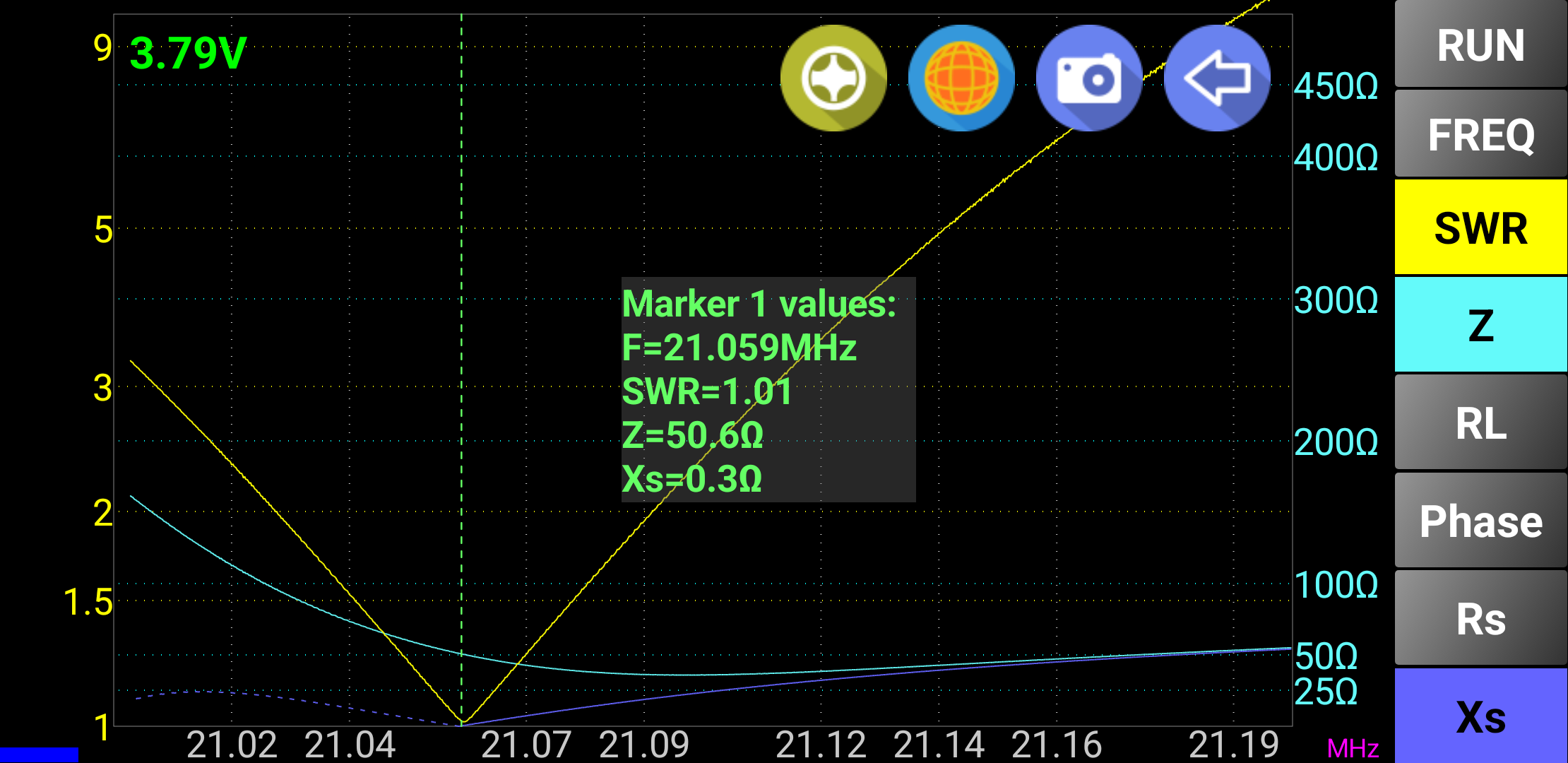

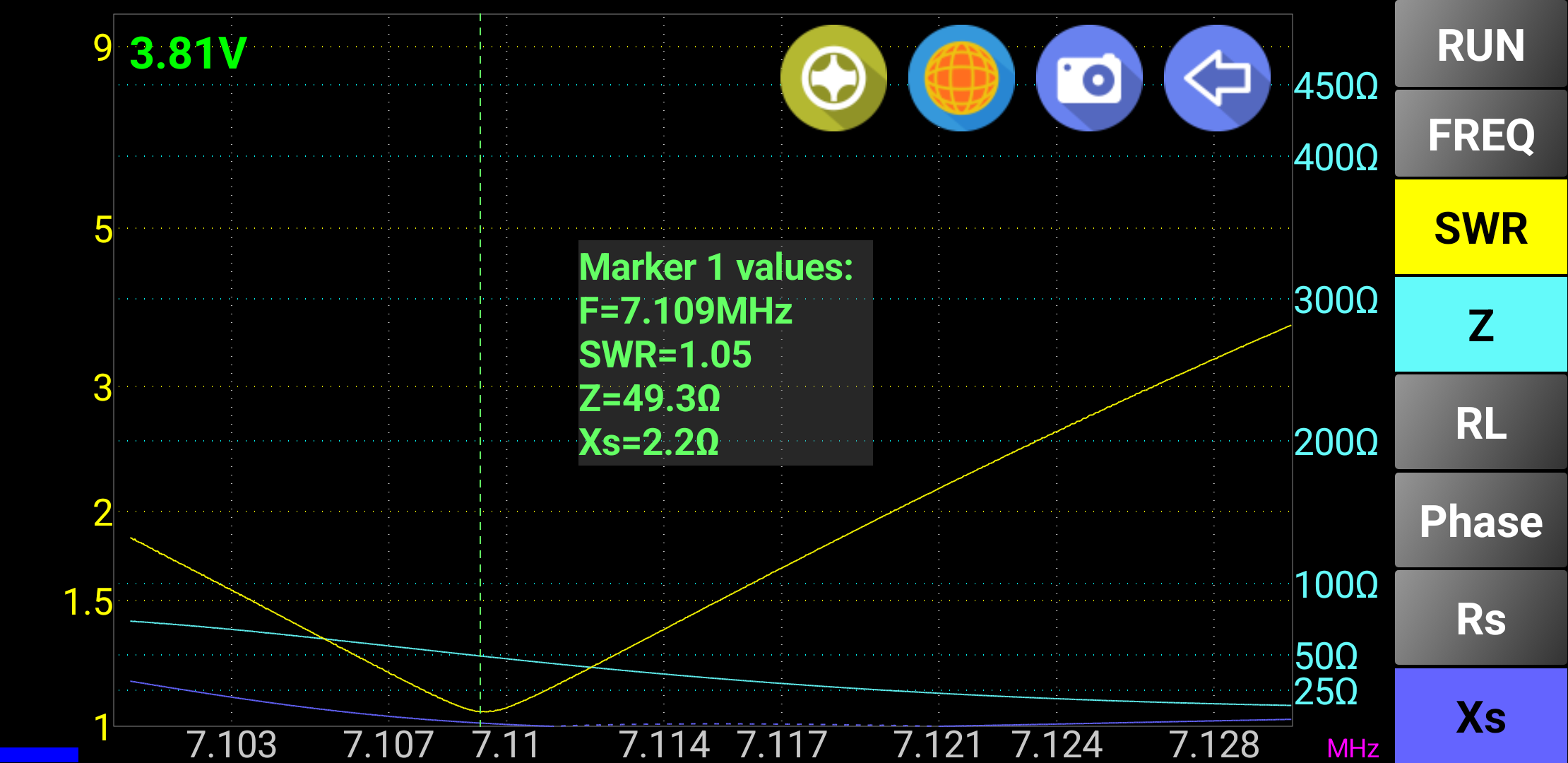

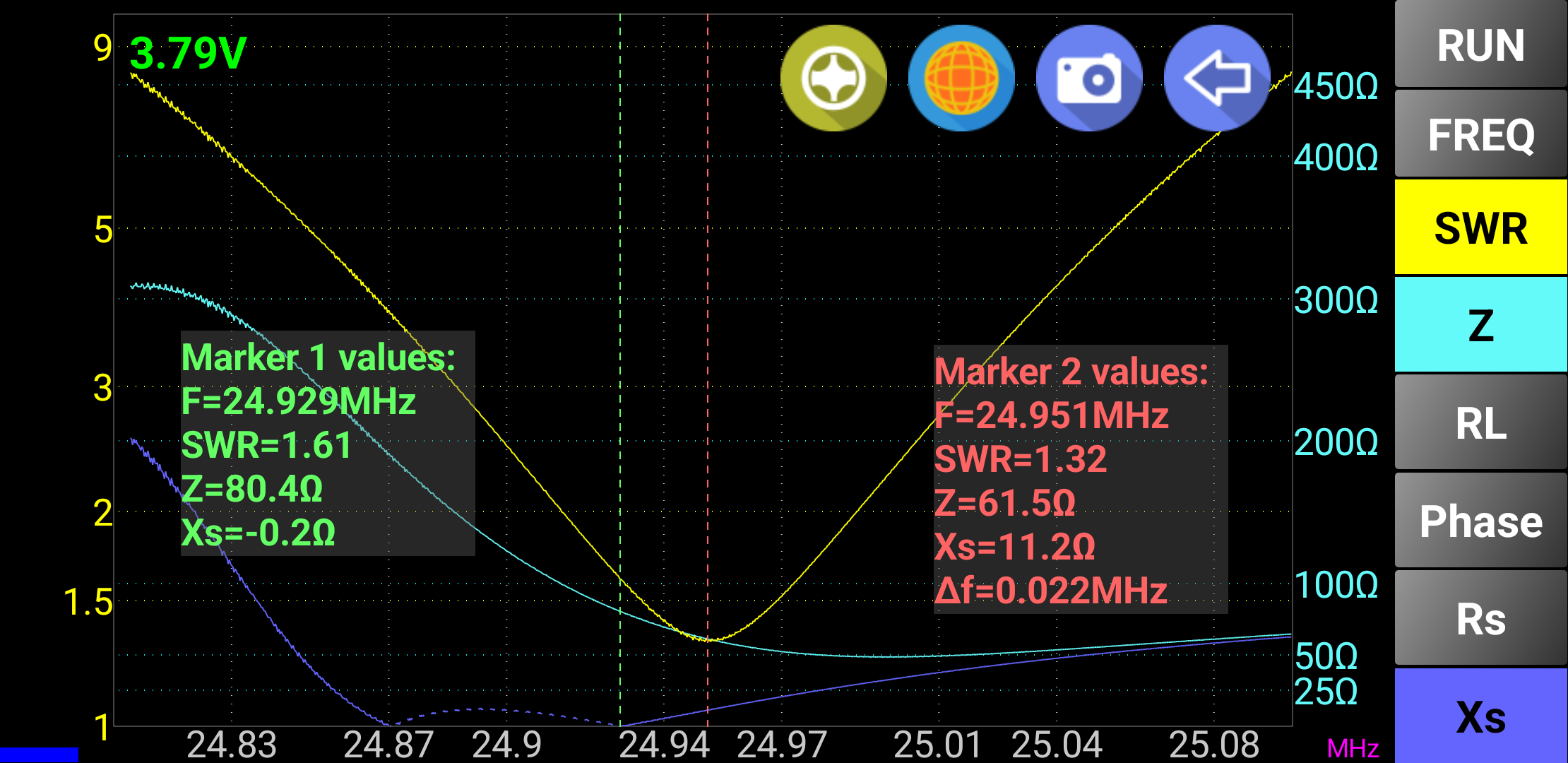

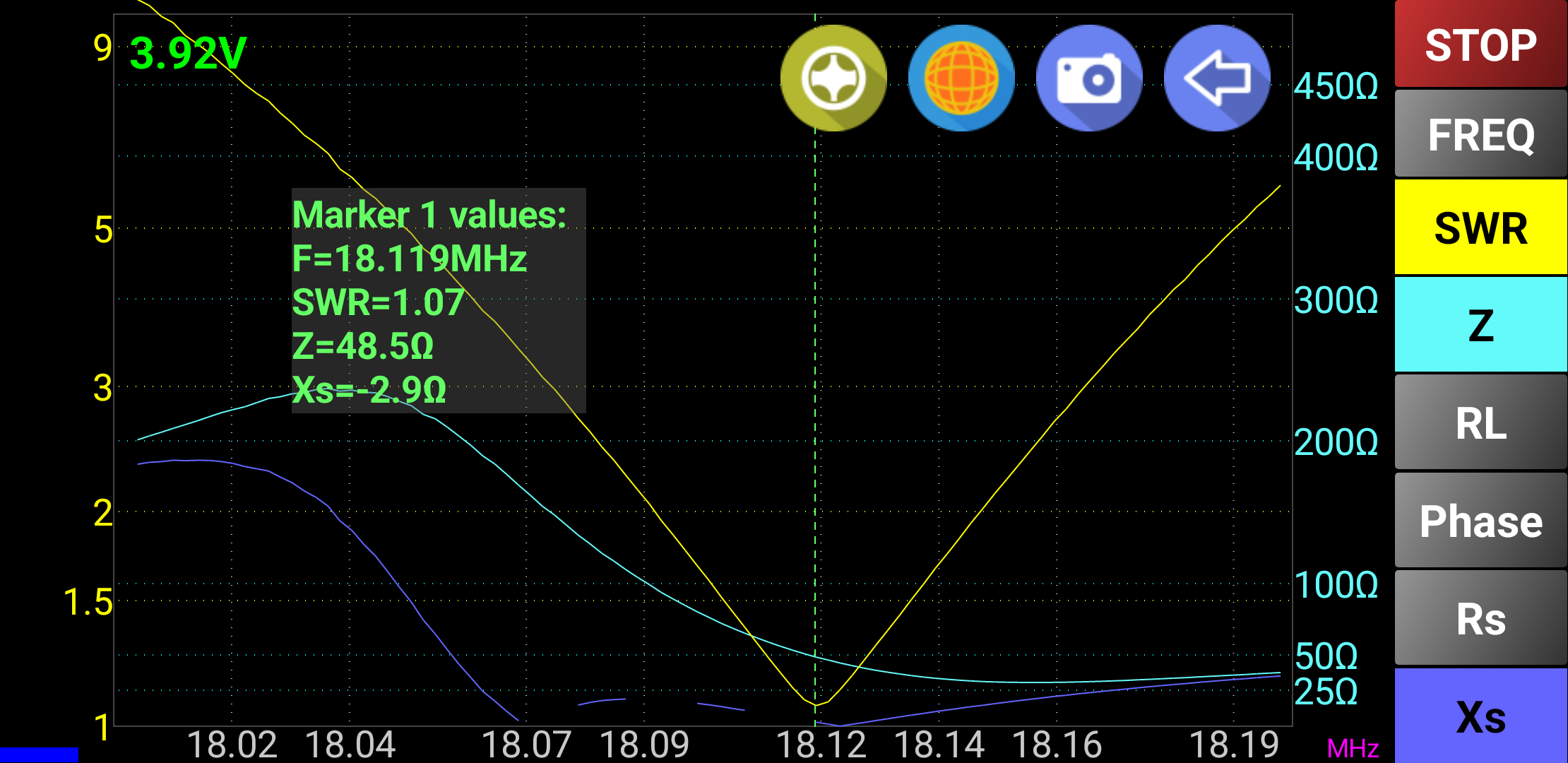

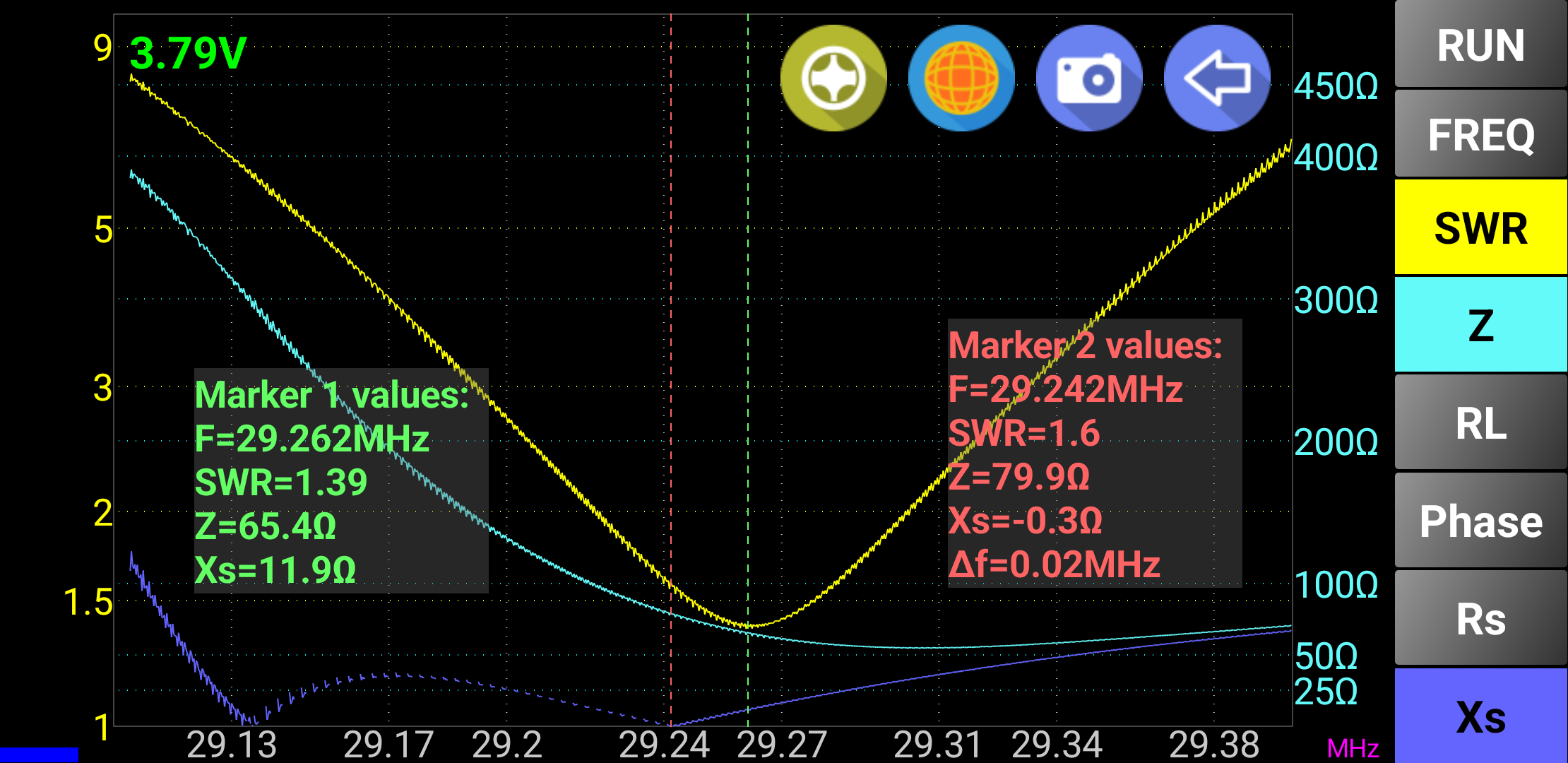

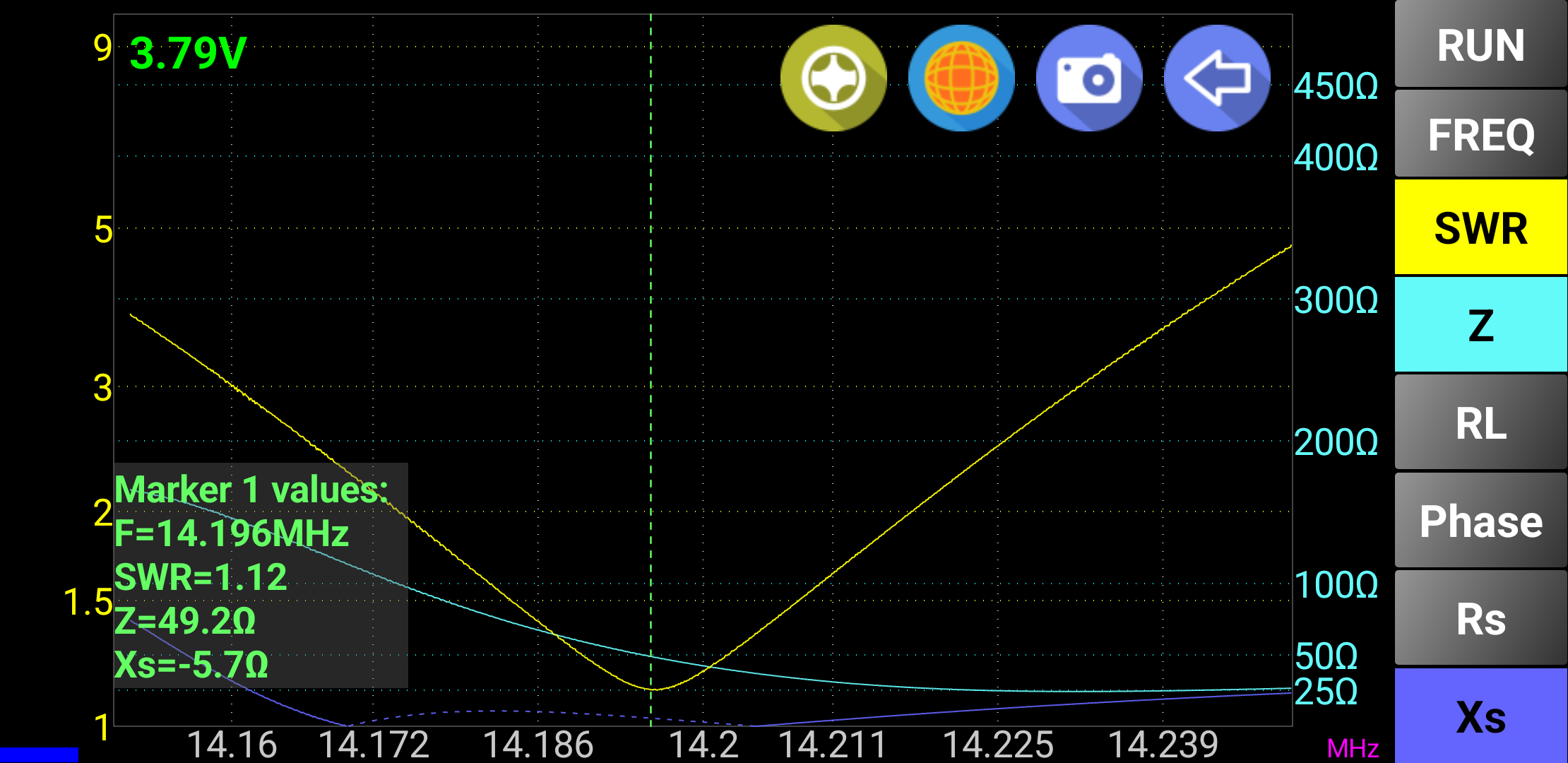

Some measurements are available below, made with the miniVNA Pro2 analyzer and my BlueVNA Android application.
