BTAEXv1
Miniature portable Bluetooth stereo audio exciter
Version 1.0
Dan - YO3GGX - yo3ggx@gmail.com
Contents
Introduction
This is a very small device that can be used to play audio from any Bluetooth enabled device (ex. Smartphone, tablet, watch, etc.) by simply placing it on a cardboard package or any other surface that can vibrate freely.
Can be built very easily, using just a few components. The whole case is 3d printed.

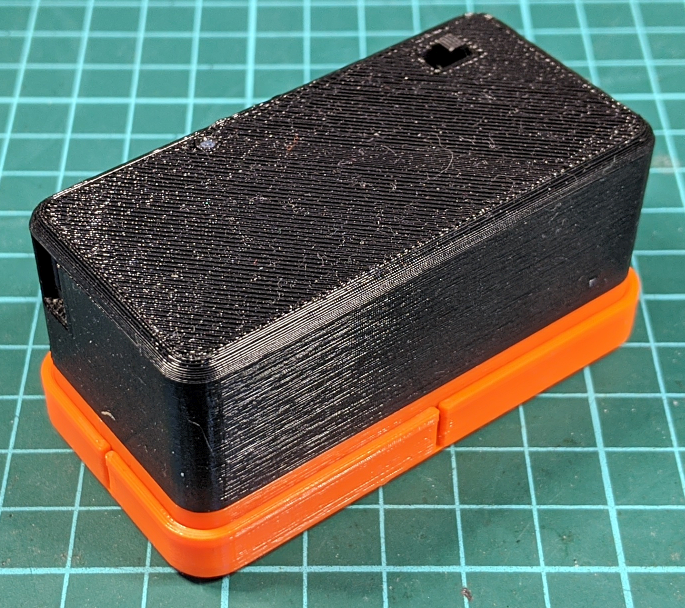

The final products look like in the following picture. The full size (L x l x h without the exciters cap) is 76mm x 38mm x 36mm or 3” x 1.5” x 1.5”.

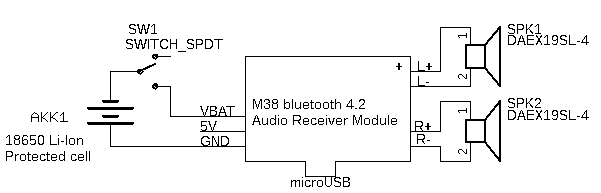

The schematic
Schematic is very simple; you just have to use some pieces of 30 AWG isolated stranded wires to interconnect the modules.
The switch SW1 must be in ON position in order to charge the battery.
WARNING!!!: Is mandatory to use a protected Li-Ion cell, as there is no protection included in the M38 module and you risk to overcharge or fully discharge the battery. THIS MAY CAUSE FIRE!!!
When you connect the audio exciters, take into consideration + and – signs marked on the Bluetooth module and the exciters.
The BOM
This is the complete list of parts (BOM):
Part Qty Value Device
AKK1 1 Li-Ion 18650 Single Li-Ion Protected Cell
SPK1-2 2 DAEX19SL-4 4W Dayton Audio exciter
SW1 1 SPDT SPDT miniature switch
BT1 1 M38 M38 BT 4.2 Audio Receiver Module 5W+5W
Let’s now see where we can find the main components from a trusted source.

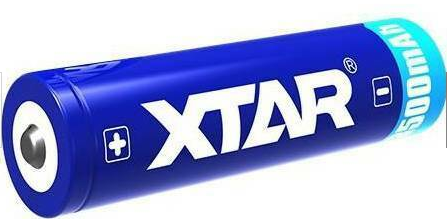

XTAR 18650 3.7V 3500mAh Li-Ion 18650 Protected cell (~ $14/pcs.) at:
https://www.ebay.com/itm/283431901778

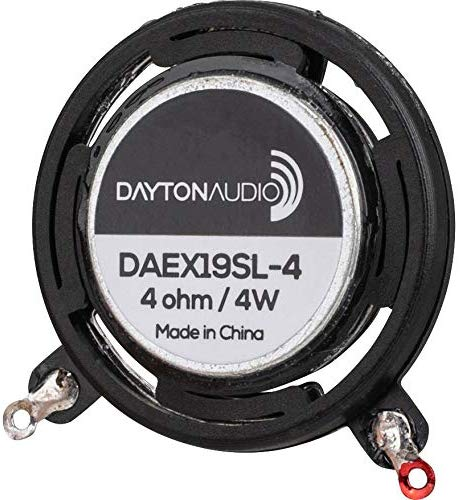

DAEX19SL-4 4W Dayton Audio exciter (~$10/pcs.) at:
https://www.amazon.com/Dayton-Audio-DAEX19SL-4-Slimline-Exciter/dp/B01N1A1EO5

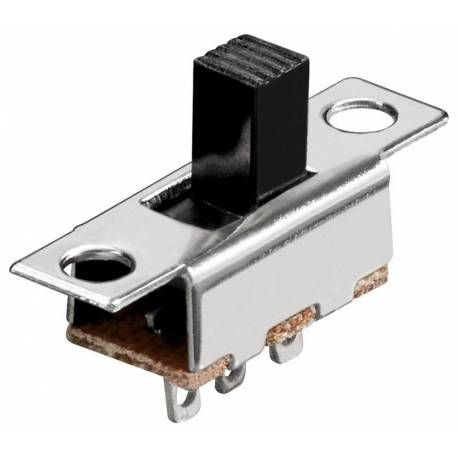

SPDT miniature switch (~ 30c) at:
https://www.conexelectronic.ro/ro/comutatoare-cu-translatie/19097-COMUTATOR-CU-TRANSLATIE.html
You can find it in many places, just use the dimensions below:
• The distance between the fixing holes: 15mm
• Length: 19,5mm

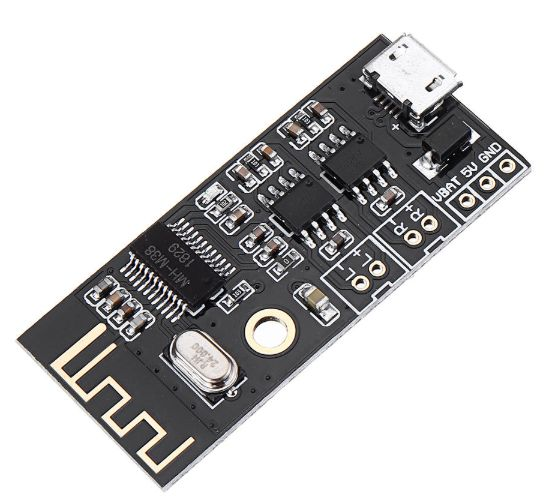

M38 BT 4.2 Audio Receiver Module 5W+5W (~ $3.5/pcs.) at:
The case
You can easily 3d print the case, the actuators mounting template and the protection cap.

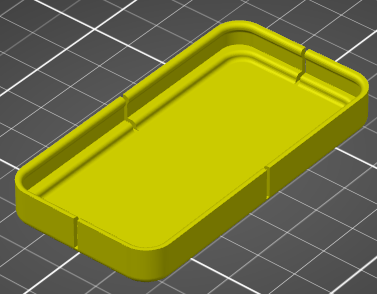

Case bottom |
|

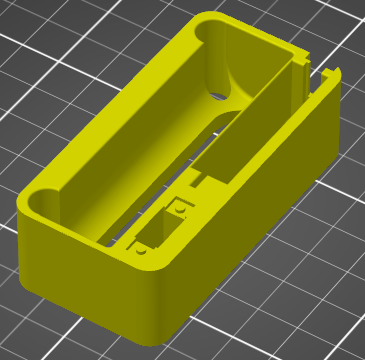

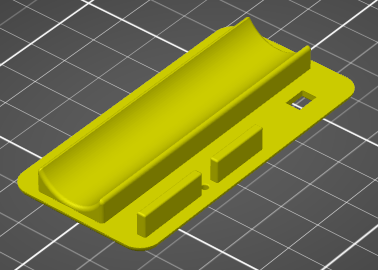

Case main body |
|
Case top upper |
|

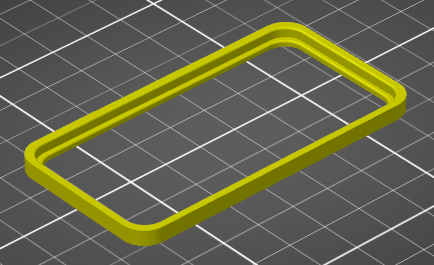

Exciters cap |
|
|
|

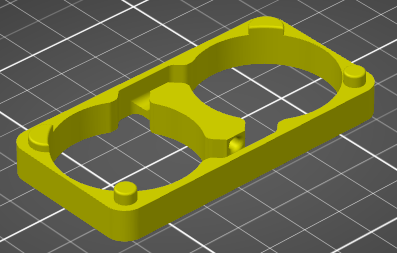

Exciters mounting template |
|
The STL files can be downloaded from here: https://www.yo3ggx.ro/btaexv1/case.zip
or from my Thingiverse page here: https://www.thingiverse.com/tdanro/designs
Mounting the components

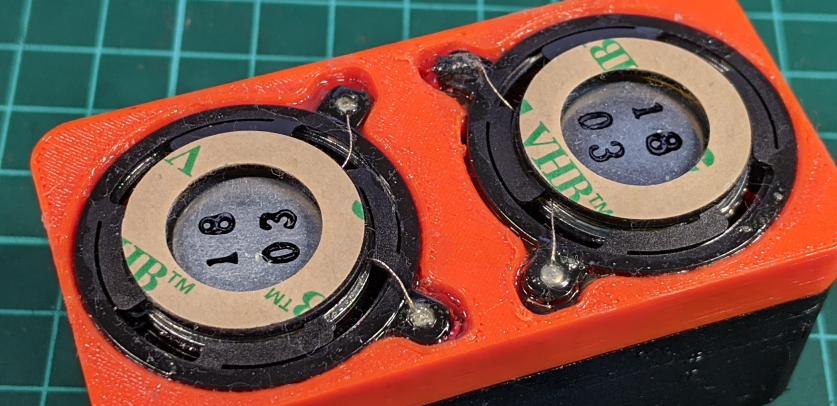

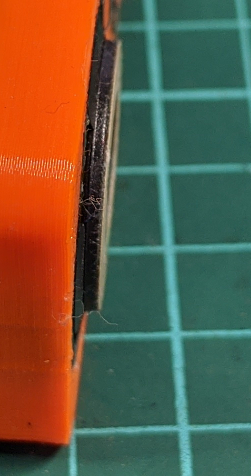

Glue the two exciters to the case bottom. Use the exciters mounting template to keep the exciters ~ 1.5mm outside the case, in order to provide enough space to vibrate. You may need to trim the contacts of the exciter. Take care not to cut the thin wires.

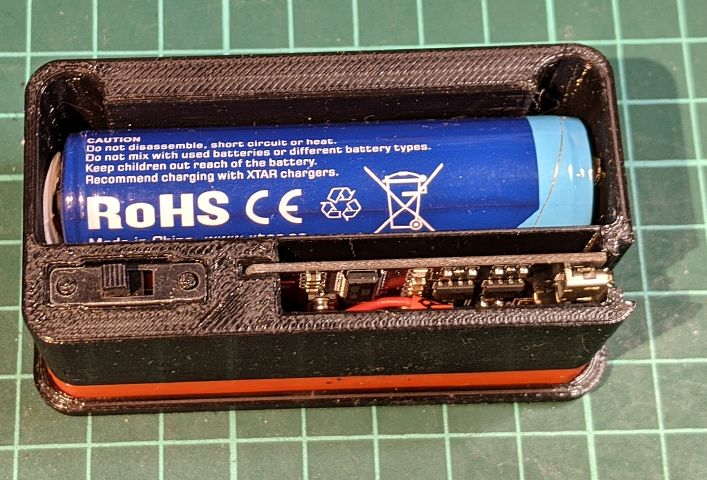

Solder 4 piece of 30AWG wires (~8cm in length) to the exciters and pass two of them through the hole in the case bottom, in order to have all of them on the BT module side. Solder the wires to the BT module (L+, L-, R+, R-). Connect the + of the Li-Ion battery to the SW1 switch. Connect the other contact of the SW1 switch to the VBAT contact of the BT module. Connect the – of the Li-Ion battery to the GND contact of the BT module. This is all.
Before mounting the top of the case, let’s do a test. Put the switch in ON position. The blue LED on the BT module will start blinking. From a smartphone search for a Bluetooth device named MH-M38 and do the pairing. Check that you can play from the smartphone to the BT audio exciter. If everything is ok, you can mount the case top.
NOTE: There is no need to glue case parts.
Short video with the device in action:
Bibliography
M38 module datasheet: https://www.sunrom.com/get/996418
DAEX19SL-4 datasheet: https://www.parts-express.com/pedocs/specs/295-261--dayton-audio-daex19sl-4-specifications.pdf
Document History
Initial version of the document (v1.0).
BTAEXv1.0_EN.pdf Bucharest, Jan 10th 2020 © Dan Toma – YO3GGX – yo3ggx@gmail.com
